1. Product Overview

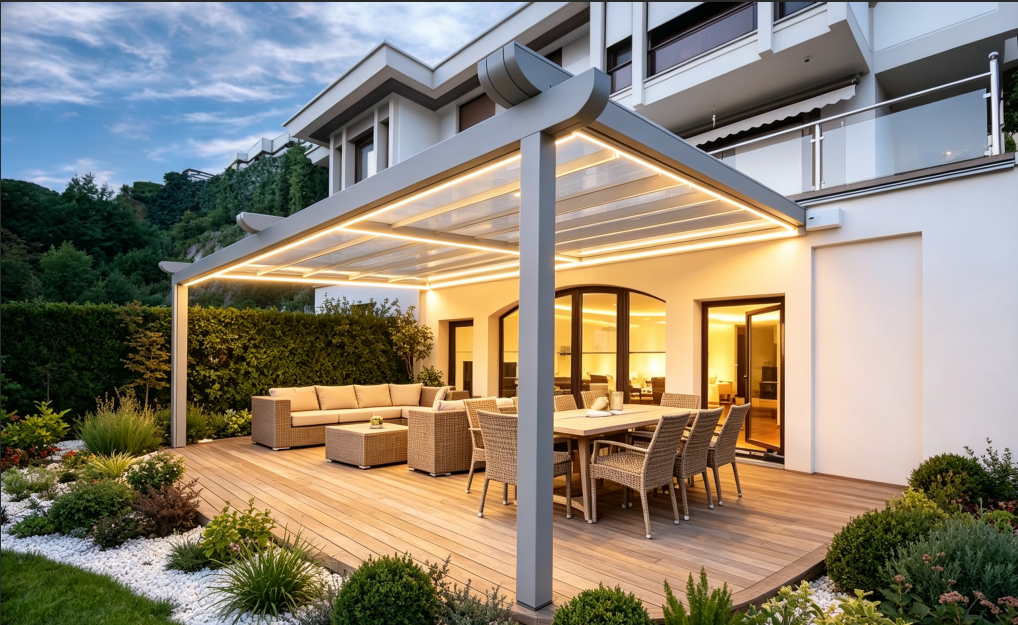

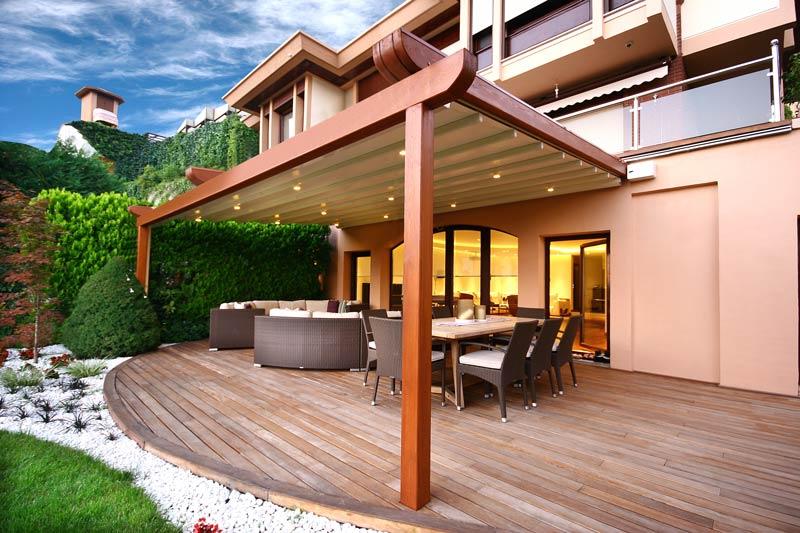

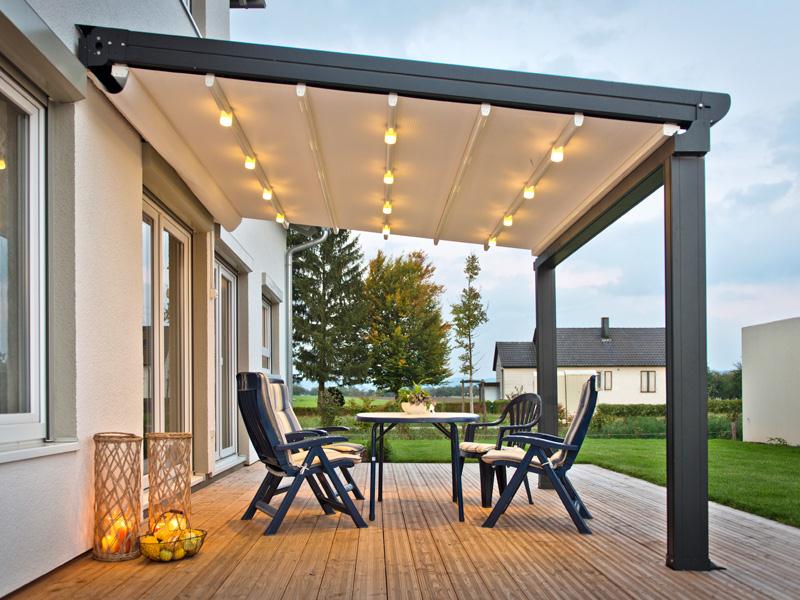

This motorized retractable pergola is a premium outdoor shading system with a fully retractable fabric roof, built-in warm white LED strip lighting, heavy-duty aluminum frame, and solid support posts. It can be wall-attached to residential buildings or installed as a freestanding independent structure.
Key advantages:
- Full retractable roof for flexible sun/rain control
- Integrated dimmable LED ambient lighting
- Weatherproof, rust-free aluminum frame
- Water-repellent, UV-resistant textile canopy
- Motorized remote control operation
- Customizable width & projection dimensions
2. Core Materials & Construction
2.1 Frame Structure
表格
| Component | Material Details | Performance |
|---|---|---|
| Main Beams, Side Rails, Support Posts | Extruded 6063-T5 Aerospace Aluminum Alloy | Anti-rust, high load-bearing, powder-coated matte black finish; 2.5mm wall thickness |
| Connection Brackets & Hardware | 304 Stainless Steel | Anti-corrosion for coastal/rainy climates |
| Gear & Retraction Mechanism | Die-cast aluminum + POM wear-resistant plastic | Smooth silent retraction, long service life |
2.2 Canopy Fabric
Standard fabric: PVC Polyester Textile (680g/㎡)
- 100% Polyester base with double-sided PVC coating
- UV protection: UV 50+ (blocks 98% harmful UV rays)
- Waterproof: 100% water repellent, 800mm water pressure resistance
- Anti-mold, anti-fade, anti-tear, temperature resistant (-30℃ ~ +70℃) Optional upgrade: Textilene / Solution-Dyed Acrylic Fabric (10-year color warranty)
2.3 LED Lighting System
- 24V low-voltage warm white LED strips (3000K)
- IP65 waterproof lamp beads embedded inside front header beam
- Dimmable via remote control, no exposed wiring
- Service life: 50,000 hours
2.4 Drive Motor
- Built-in tubular silent motor (220V EU / 110V US / 240V AU options)
- Overload & overheat automatic protection
- RF wireless remote control, wall switch optional
3. Size Specifications
3.1 Standard Sizes (Ready Stock)
- Wall-mounted single span:
- Width (wall side): 3m / 4m / 5m / 6m
- Projection (extend out): 2m / 2.5m / 3m / 3.5m / 4m
- Freestanding double-post unit:
- Standard overall width: 4m,5m,6m
- Standard projection: 3m,3.5m,4m
- Standard post height: 2.5m / 2.8m / 3.0m (custom height available)
3.2 Maximum Custom Sizes
- Single span maximum: Max Width 7m, Max Projection 4.5m
- Multi-span connected system: Unlimited length by linking multiple single units
- Maximum single post height: 3.5m
- Minimum dimension limit: Width ≥2m, Projection ≥1.5m
3.3 Dimension Definition
- Width: Horizontal length parallel to the building wall
- Projection: Distance extending outward from wall to front posts
- Post Height: Ground to top header beam height
